1m footscan system - MATERIALIZED

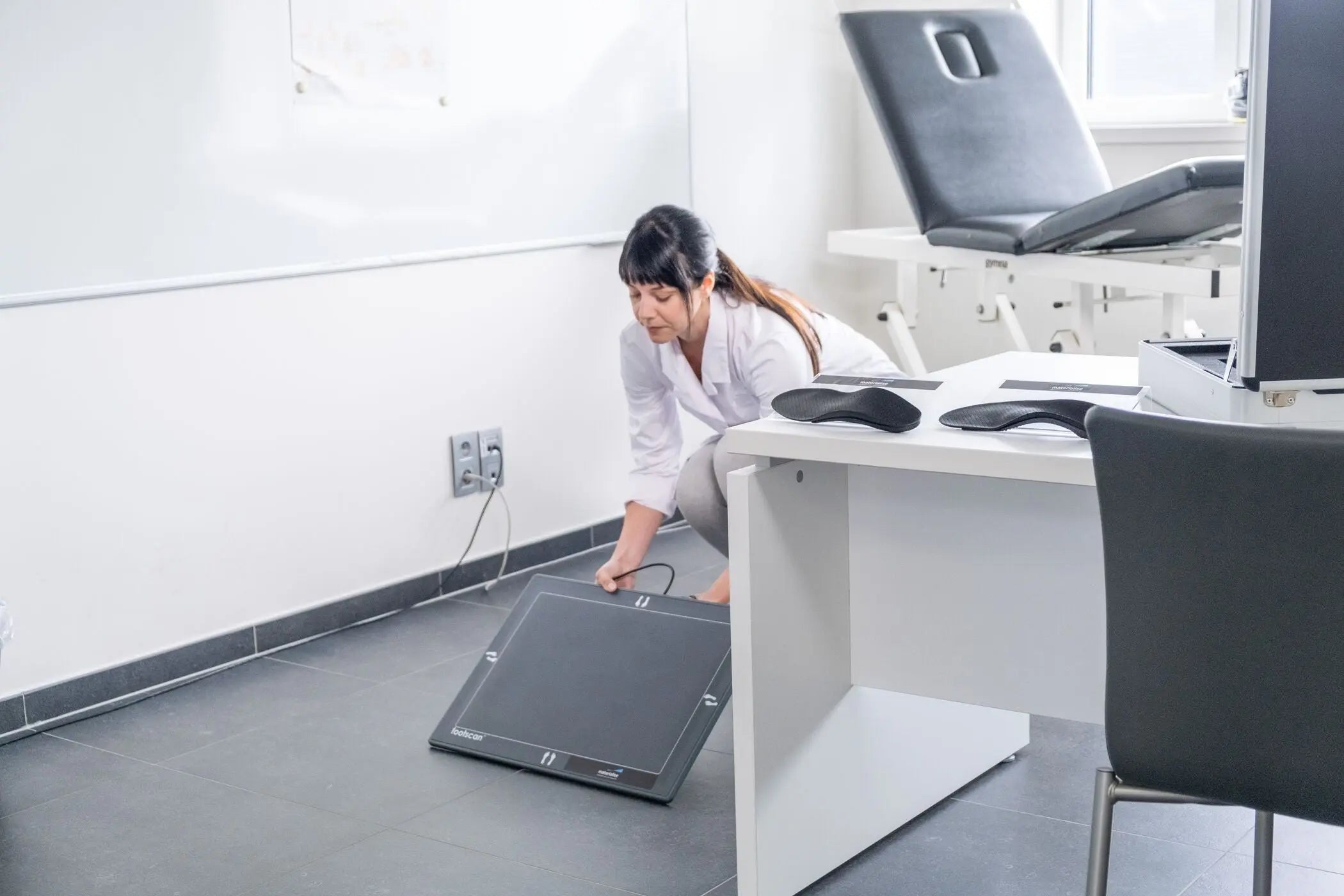

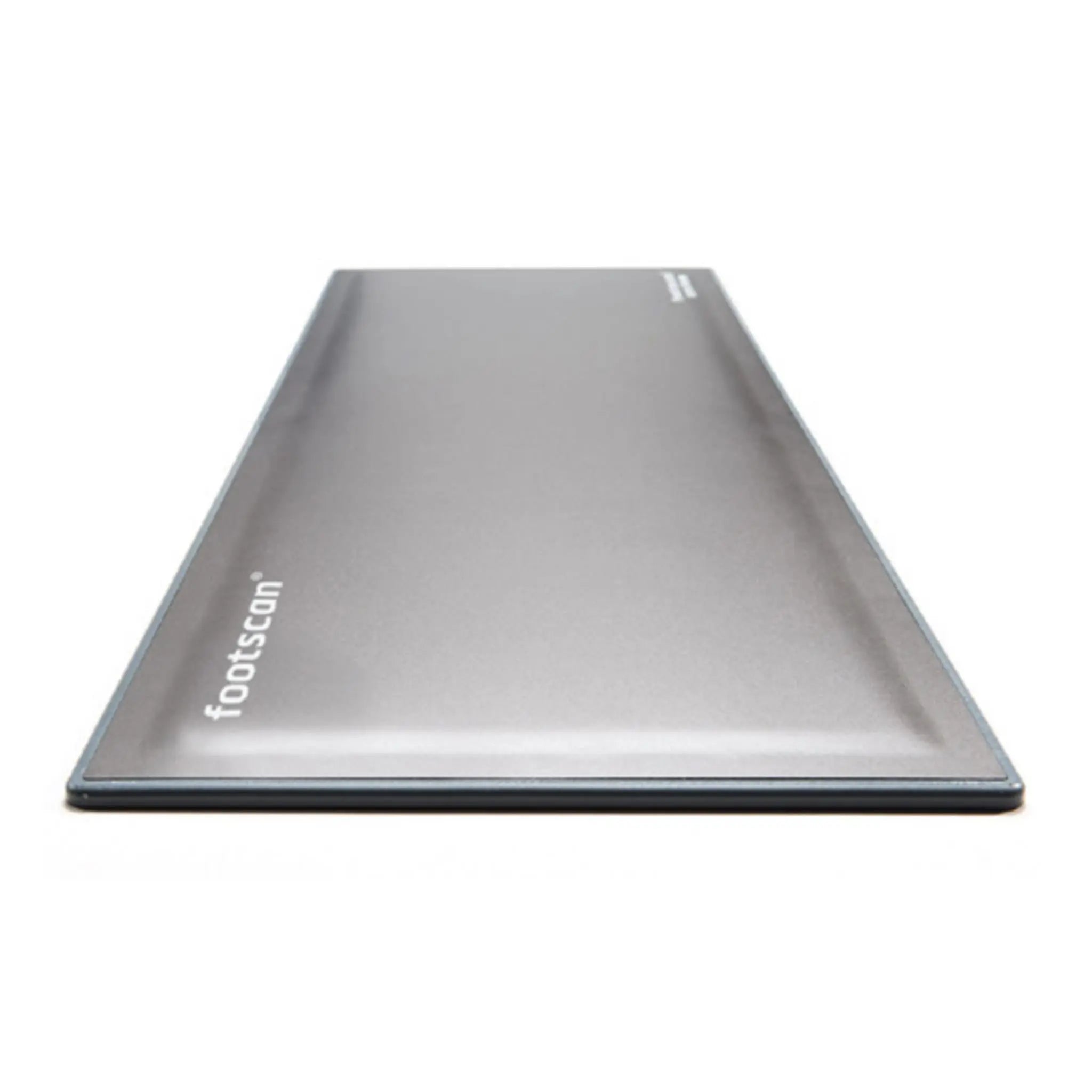

The Footscan pressure measurement system is a state-of-the-art device designed for gait recording and analysis. The software (sold separately) accurately records pressure data.
plantar, static and dynamic, on subjects barefoot or in shoes.
3D scanners can be used to create a three-dimensional representation of the foot. Please refer to the manual included with your 3D scanner for more information.

General characteristics:
• Dimensions: 1068 x 418 x 12 mm
• Weight 8.3 KG
• Number of sensors: 8192 (128 x 64 matrix)
• Sensor dimensions: 7.62 x 5.08 mm
• Active detection area: 975 x 325 mm
• Sensors (technology): resistive
• Pressure range: 1 – 127 N/cm2
• Acquisition frequency 200 Hz
• 10-bit resolution
• Operating temperature: +15°C to +30°C
• Storage temperature: +0°C to +40°C
• Operating conditions (humidity): 20% to 80% non-condensing
• PC connection: USB 2.0
• Cable (length): 4300mm +/- 50mm
